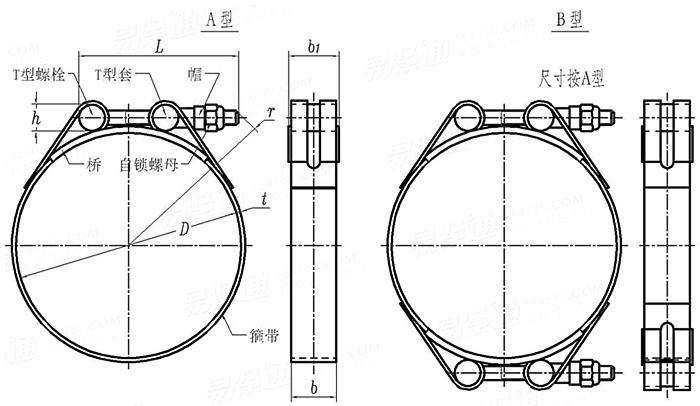

T-bolt hose clamps

zoom

Category：clamps series

Product description：

Channel bridge

Screw ：T-bolts head carbon steel/stainless steel

Nut ：hex lockout

band and bridge plate material 300 stainless steel

Products Inquiry

SAE NO.	Range		Pcs/carton	Carton size(cm)
SAE NO.	inch	mm	Pcs/carton	Carton size(cm)
-	1 1/4"-1 7/16"	32-37	300	372821
-	1 3/8"-1 9/16"	35-40	250	372821
-	1 1/2"-1 11/16"	38-43	250	372821
-	1 5/8"-1 7/8"	41-46	-	-
28	1 3/4"-2"	44-52	-	-
30	1 13/16"-2 1/16"	46-54	-	-
34	1 15/16"-2 1/4"	50-58	-	-
40	2 1/8"-2 7/16"	54-62	200	38.53823
46	2 5/16"-2 5/8"	59-67	200	38.53823
52	2 1/2"-2 13/16"	64-72	200	38.53826.5
58	2 11/16"-3"	69-77	200	583819
64	2 7/8"-3 3/16"	73-81	200	583819
70	3 1/16"-3 3/8"	78-86	200	38.53829.5
76	3 1/4"-3 9/16"	83-91	200	583823
82	3 7/16"-3 3/4"	88-96	200	583823
88	3 5/8"-3 15/16"	92-100	150	583819
94	3 13/16"- 4 1/8"	97-105	150	583821
100	4"-4 5/16"	102-110	150	583821
108	4 1/4"-4 9/16"	108-116	150	583821
116	4 1/2"- 4 13/16"	114-122	-	-
124	4 3/4"-5 1/16"	121-129	-	-
132	5"-5 5/16"	127-135	-	-
