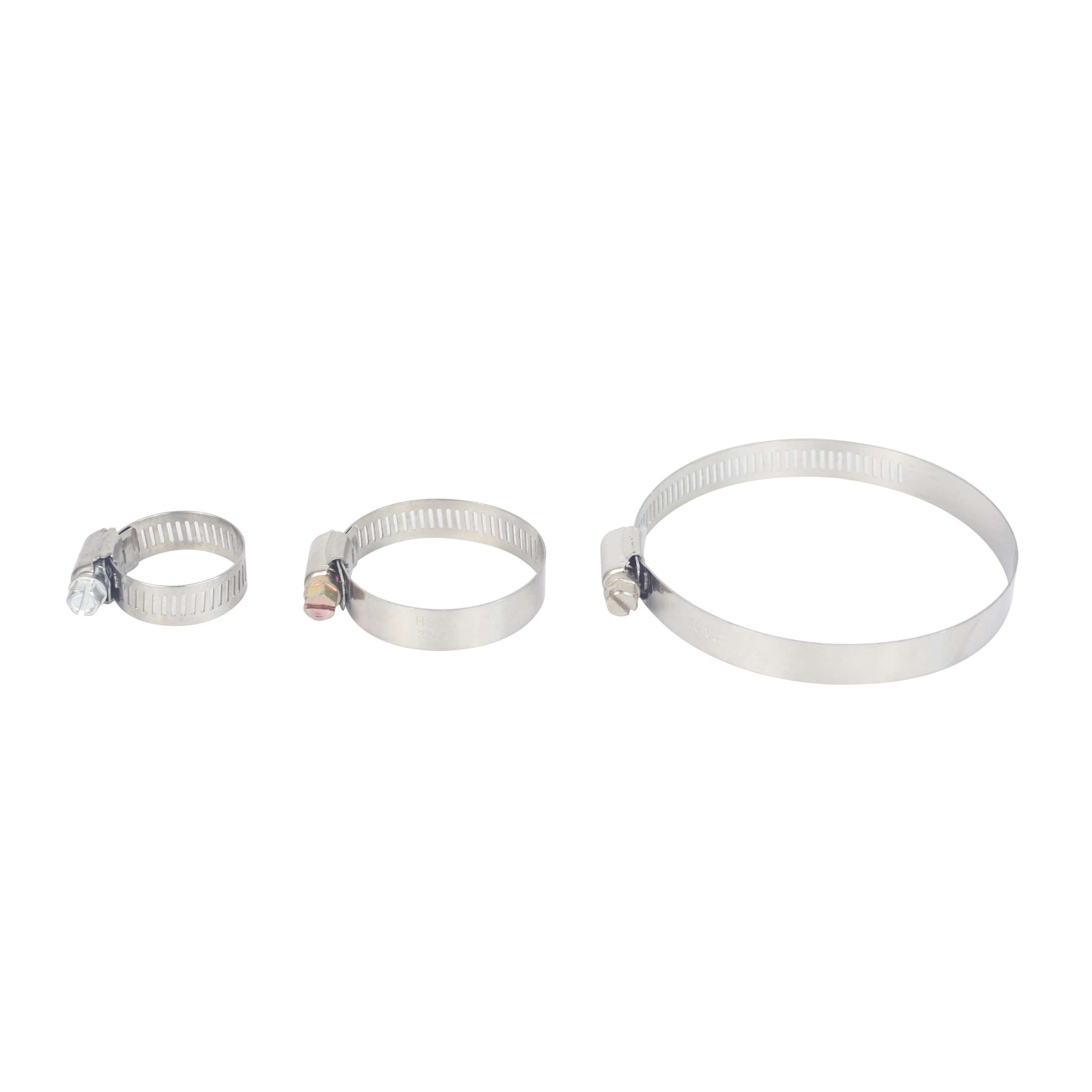

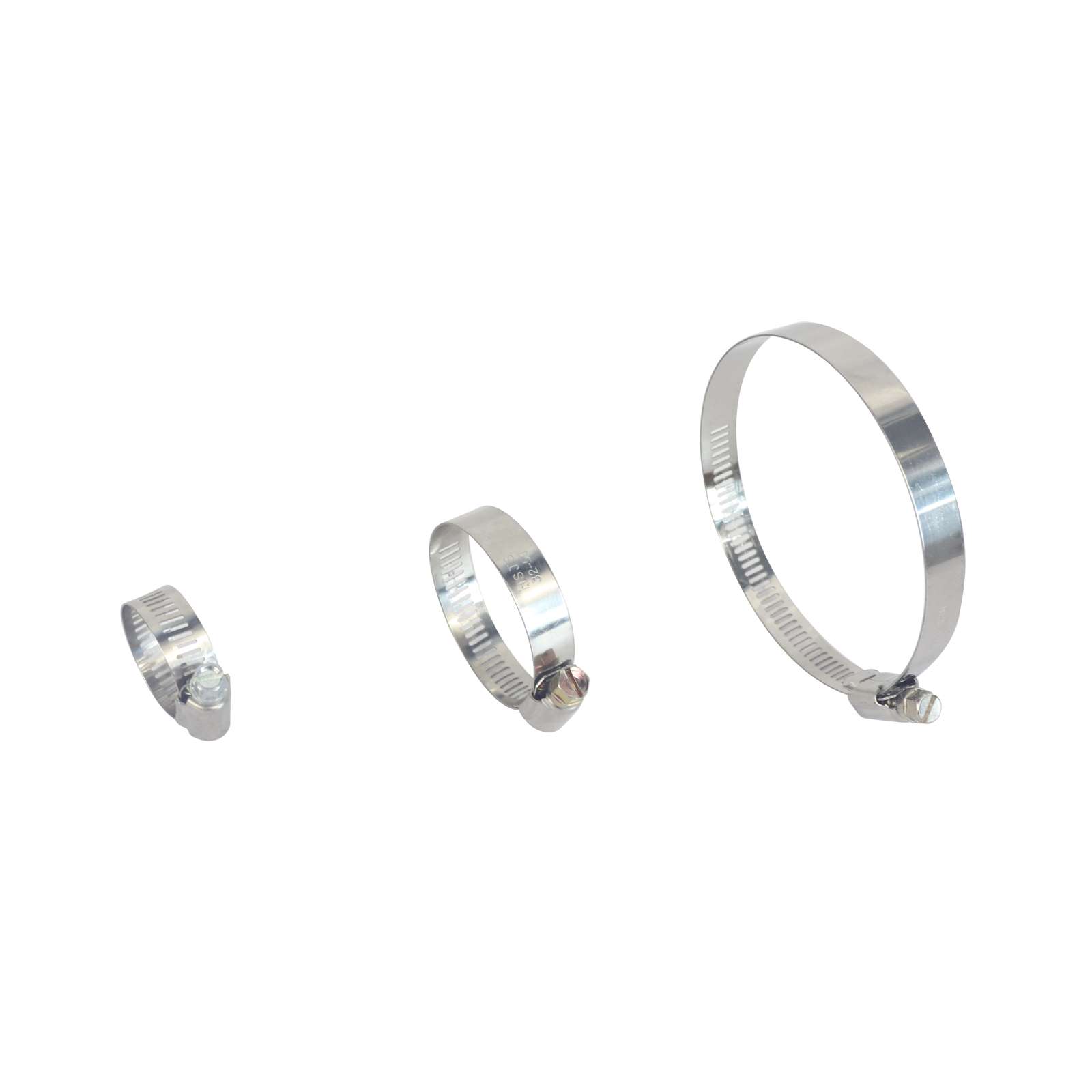

WORM DRIVE HOSE CLAMPS American Type

zoom

Category：clamps series

Product description：

Band width ：12.7mm/14.2mm

Band material：200/300/400 grade stainless steel

Screw ：8mm hex-head ;galvanized carbon steel or stainless steel

Products Inquiry

Range		Pcs/carton	Carton size(cm)
inch	mm	Pcs/carton	Carton size(cm)
0.44"-0.78"	11-22	700	2824.517.5
0.50"-0.91"	13-23	600	2824.517.5
0.56"-1.06"	14-27	600	2824.521
-	17-32	800	372821
0.69"-1.25"	18-32	800	372821
-	19-38	600	372821
0.81"-1.5"	21-38	600	372821
0.81"-1.75"	21-44	700	38.53821
-	21-45	700	38.53821
-	27-50	600	38.53821
1.06"-2.00"	27-51	600	38.53821
1.31"-2.25"	33-57	500	38.53821
-	39-64	600	583819
1.56"-2.50"	40-64	600	583819
-	45-70	500	583819
1.81"-2.75"	46-70	500	583819
2.06"-3.00"	52-76	450	583819
-	58-83	450	583819
2.31"-3.25"	59-83	450	583819
2.56"-3.50"	65-89	400	583823
2.81"-3.75"	71-95	350	583823
3.06"-4.00"	78-102	300	583823
3.31"-4.25"	84-108	350	583825
3.56"-4.50"	90-114	300	583825
4.06"-5.00"	103-127	400	583828
4.62"-5.50"	117-140	350	583828
5.12"-6.00"	130-152	300	583828
5.56"-6.50"	141-165	300	583828
6.18"-7.00"	157-178	250	583828
